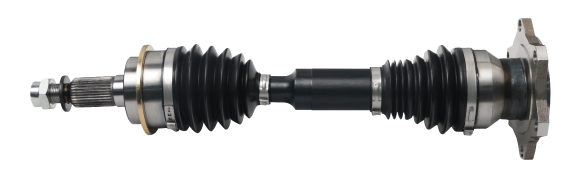

Extended Travel CV Axles

Designed Specifically for Lifted Vehicles


A lifted vehicle dramatically increases the stresses of stock components and often exceeds the original design limitations.

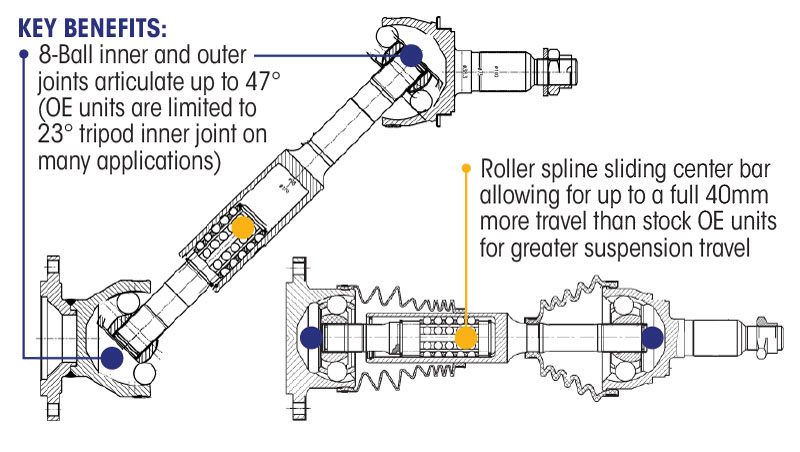

NAPA Extended Travel CV Axles utilize a sliding center shaft that provides up to 40mm greater linear travel than an OEM CV shaft, which allows for greater suspension travel for off-road and lifted applications. They also include high strength 8-ball fxed CV inner and outer joints that have 60% more operating angle on the inboard joint, eliminating joint failure from lift kits and increased ride height.


  • Premium thermoplastic boots withstand exposure to extreme temperatures ranging from –58°F/50°C to +478 °F/ 248°C.
  • Stainless steel stepless clamps provide improved clamping force on the TPE boot
    to create a tighter, more reliable 360° optimum seal even in the most extreme temperatures.
  • Specially formulated 7023B grease is designed to resist loss of lubricity and maintain OE lubricant performance in even the most severe temperatures ranging from -40°F/C to +280°F/140 °C.

New Extended Travel CV Axle Applications Now Available

For full coverage and to find the exact part you need, please visit napaonline.com and enter your vehicle information.
