Subaru HD New Premium C.V. Axles

Solve OE Binding Issues

THE PROBLEM:

Developed from Original Equipment design. These CV axles rely on the inboard joint to provide all linear travel (plunge) for the CV axle.

This limits the maximum angle this type of CV axle can operate at without binding to,
23° for a tripod style and 30° for 6 ball style joints.

It also limits the amount of linear travel the CV axle is capable of to roughly 2 inches.

The OE CV axle creates a binding issue when installed on vehicles where the transmission either has shifted excessively from center, or experiences excessive side to side movement during acceleration.

THE SOLUTION:

Developed for increased linear travel and greater articulation, to compensate for worn or fatigued engine / transmission mounts.

Moving the linear (telescopic) function of the CV axle from the inboard joint to the center shaft, allows the use of 6-ball
joints with a full 45° of articulation on both sides.

It also allows up to 50% more linear travel than a conventional CV axle.

The HD CV axle design eliminates the binding issue encountered on vehicles where the transmission has either shifted away from center or experiences side to side movement during acceleration.

ADDRESSING SUBARU VIBRATION ISSUE:

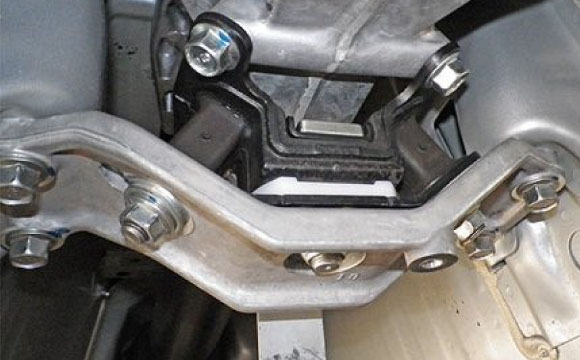

Problem: Subaru transmission mounts are susceptible to becoming very spongy and wear out due to the unique horizontal movement of a boxer (cylinders horizontally opposed) engine. When these mounts wear, they cause the engine/transmission to sit slightly off center.

Solution: Inspect and replace the transmission mount (if worn) to eliminate off center vibration issues. Note: If the mount is worn, the articulation angle of the new replacement axle becomes the mount that is holding the transmission in the correct location, which creates a binding vibration.

New Subaru HD Premium CV Axle Applications Now Available

For full coverage and to find the exact part you need, please visit napaonline.com and enter your vehicle information.

Part No.

94-9642

Make:

Subaru

Model:

Forester, Impreza, Legacy

Years:

1990-2001

Location:

Front Left, Front Right

Part No.

94-9648

Make:

Subaru

Model:

Baja, Forester, Impreza, Legacy, Outback

Years:

1999-2006

Location:

Front Left, Front Right

Part No.

94-2041

Make:

Subaru

Model:

Impreza, Legacy, Outback

Years:

2005-2011

Location:

Front Left, Front Right

Part No.

94-9657

Make:

Subaru

Model:

Forester, Impreza, WRX, XV Crosstrek

Years:

2008-2015

Location:

Front Left, Front Right

Part No.

94-9672

Make:

Subaru

Model:

Impreza, WRX, WRX STI

Years:

2008-2018

Location:

Rear Left, Rear Right

Part No.

94-9678

Make:

Subaru

Model:

DL, GL, GL-10, Loyale, RX, XT

Years:

1985-1994

Location:

Front Left, Front Right

Part No.

94-9679

Make:

Subaru

Model:

Impreza

Years:

2002-2004

Location:

Front Left, Front Right

Part No.

94-9680

Make:

Subaru

Model:

9-2X, Impreza

Years:

2003-2007

Location:

Front Left, Front Right

Part No.

94-9681

Make:

Subaru

Model:

Forester, Impreza

Years:

2003-2008

Location:

Front Left, Front Right

Part No.

94-9682

Make:

Subaru

Model:

9-2X, Forester, Impreza, Legacy

Years:

1995-2007

Location:

Rear Left

Part No.

94-9683

Make:

Subaru

Model:

9-2X, Forester, Impreza, Legacy

Years:

1995-2008

Location:

Rear Left, Rear Right

Part No.

94-8956

Make:

Subaru

Model:

B9 Tribeca, Tribeca

Years:

2006-2014

Location:

Front Left, Front Right
